Description

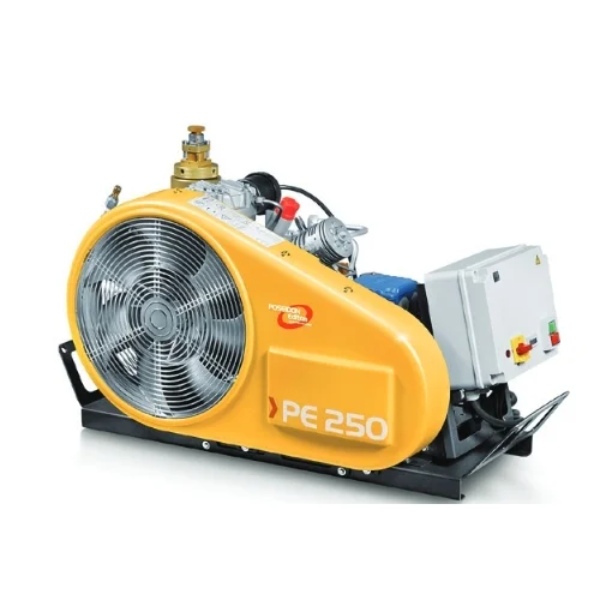

Bauer Poseidon Edition 250 – TE
High pressure compressor, 250 l/min, 5,5 kW, three-phase motor 400 V, 50 Hz, P21 filter system

Scope of delivery Basic version
Fully operational compressor system, consisting of:

Compressor block 3 cylinders, 3-stage
Micronic intake
Intercooler / aftercooler
Intermediate / final separator for oil / water condensate
Intermediate pressure safety valves after each compressor stage
End pressure safety valve type tested according to T?V
oil lubrication
Pressure holding / check valve after the last compressor stage
Three-phase motor

Compressor block and drive motor are mounted on a base frame.
Base frame, carrying handle and frame connections are made of painted powder-coated steel.
The drive takes place by means of V-belts.
support frame
Filter system P 21 with long-term filter cartridge TRIPLEX
Filling device PN 200 bar or PN 300 bar
1 filling hose, 1 m long
1 filling valve PN 200 or 300 bar, with automatic ventilation and manometer;
Threaded connection R 5/8 “, according to DIN EN 144-2
1 international filling connection (not permitted in Germany)
Operating instructions with spare parts list, CE conformity declaration, pressure vessel certificates
