Description

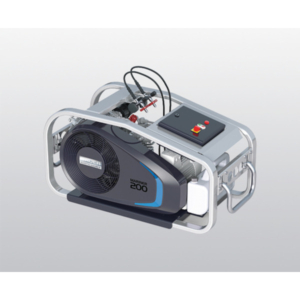

Bauer MARINER 200 – B
High pressure compressor, 200 l/min, 6,6 kW, 4-stroke gasoline engine, P21 filter system

Scope of delivery Basic version:
Fully operational compressor system, consisting of:

Compressor block 3 cylinders, 3-stage
Micronic intake
Intercooler / aftercooler
Intermediate / final separator for oil / water condensate
Intermediate pressure safety valves after each compressor stage
End pressure safety valve type tested according to TÜV
oil lubrication
Pressure holding / check valve after the last compressor stage
gasoline engine
Air intake hose, 3 m long

Support frame in vibration-optimized construction
Lightweight construction through the use of aluminum alloys
Filter system P 21 with long-term filter cartridge TRIPLEX
Filling device PN 200 or PN 300 bar, 2 filling connections each consisting of:
1 filling hose, 1 m long
1 filling valve PN 200 or 300 bar, with automatic ventilation and manometer;
Threaded connection R 5/8 “, according to DIN EN 144-2
For 200-bar systems: 1 international filling connection (not approved in Germany)
Operating instructions with spare parts list, CE conformity declaration, pressure vessel certificates
