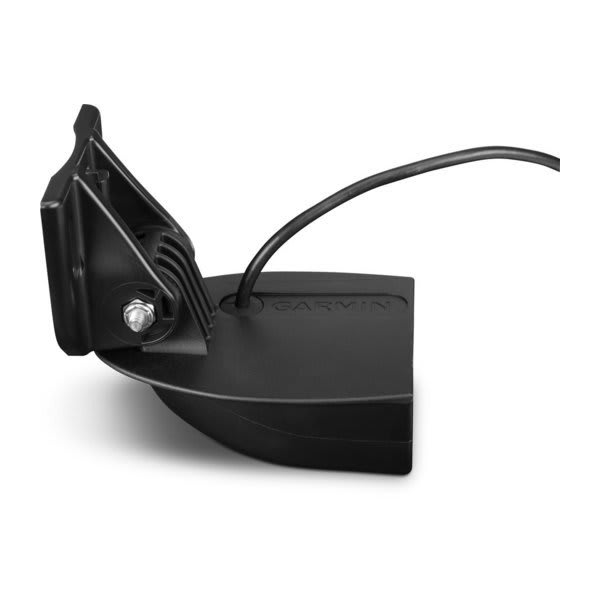

Garmin GT15M-TM
GT15M-TM
1,209.00
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
GT15M-TM transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900 feet.
The 8-pin transducer features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be mounted on the transom.
Follow the included installation instructions carefully to avoid damaging your boat.
Additional information
Additional information
| Series | |
|---|---|
| Pin Count | 8-PIN |
| Installation | TRANSOM MOUNT |
| Tradition Sonar | MID-CHIRP |
SPECS
General |
|
| Transducer frequency | CHIRP Mid-band (85-165 kHz) |
|---|---|
| Transducer power | 600 W |
| Transducer beamwidth | 24°-13° |
| Transducer maximum depth | 1,900 ft. freshwater |
| Transducer cable length | 30 ft. |
| Transducer depth/speed/temperature | Depth and temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | 0°- 70° degree transom |
IN THE BOX
GT15M-TM transducer
Transom mount
Documentation
