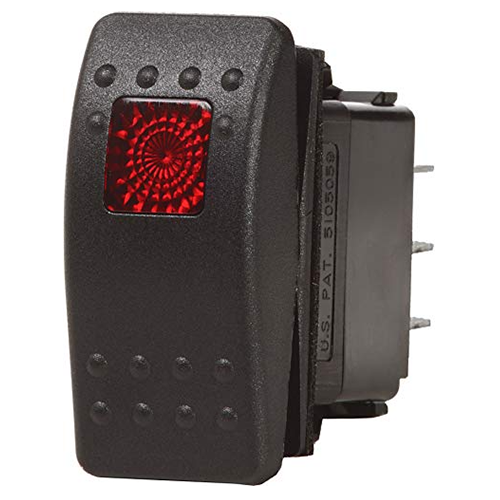

Description

Vibration, shock, thermoshock, moisture and salt spray resistant
Specially manufactured for mounting in Blue Sea Systems’ water resistant panels
Ignition Protected – Safe for installation aboard gasoline powered boats
Meets UL1500 and ISO8846 ignition protection requirements
Specifications
Indicator Light Life: 100,000 hour half life
Temperature Rating: -40?C to +85 Degrees C
Current Rating: 20A @ 12V DC, 15A @ 24V DC
Mounting Hole: 1.45″ x 0.83″ (36.83mm x 21.08mm)
LED Amperage: 18 Milliamperes
Seals: Internal and external gasket panel seal
Color: Red Lens
Pole/Throw: DPST
Action: OFF-ON
Embedded LEDs: 1
