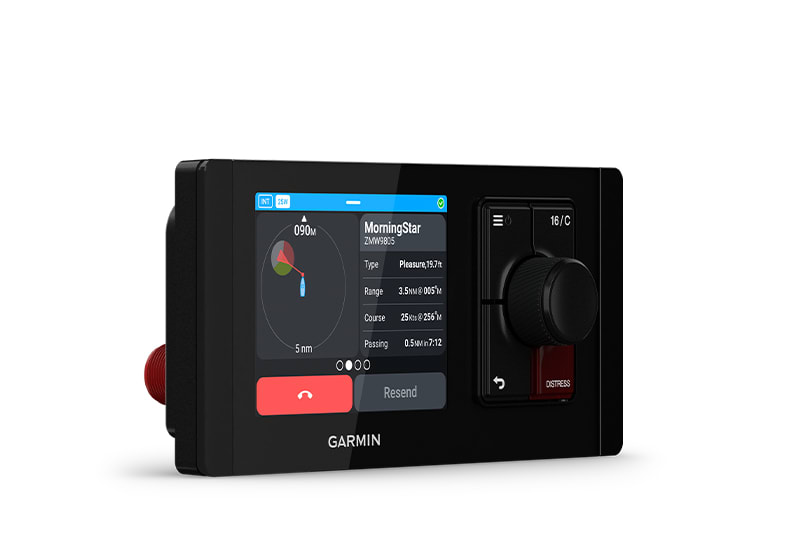

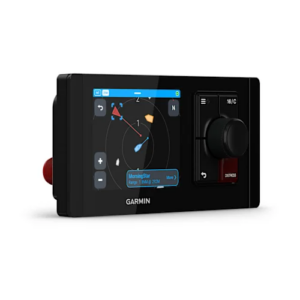

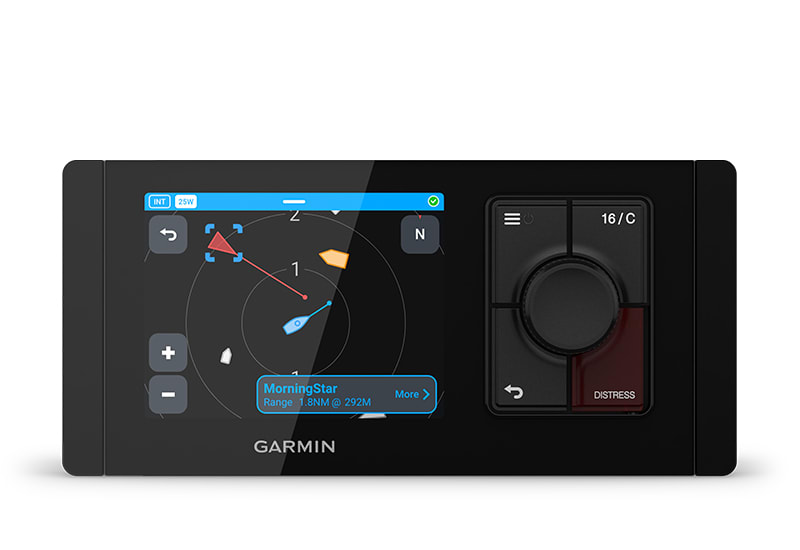

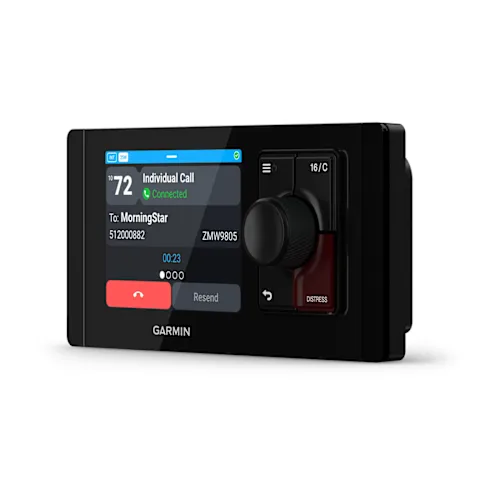

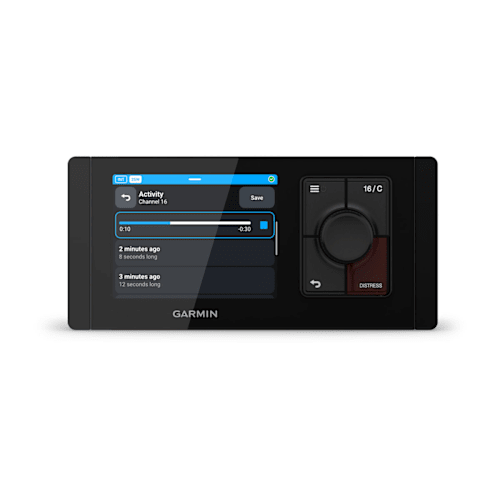

Garmin Signal™ RM 100
2,709.00
- Description
- In The Box
- Specs
Description
YOUR REMOTE COMMUNICATION SOLUTION

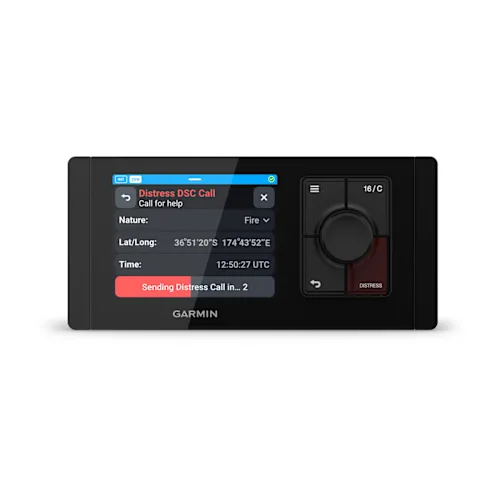

The Garmin Signal RM 100 remote station lets you control your compatible VHF marine radio from a secondary helm or flybridge. Enjoy remote control access to VHF, DSC, AIS and other Garmin Signal VHF radio functions with this premium fixed-mount remote station.
WORKS WITH GARMIN SIGNAL VHF RADIOS VIA THE GARMIN BLUENET™ NETWORK
INTERCOM LINKS REMOTE STATION AND NETWORKED HEAD UNITS

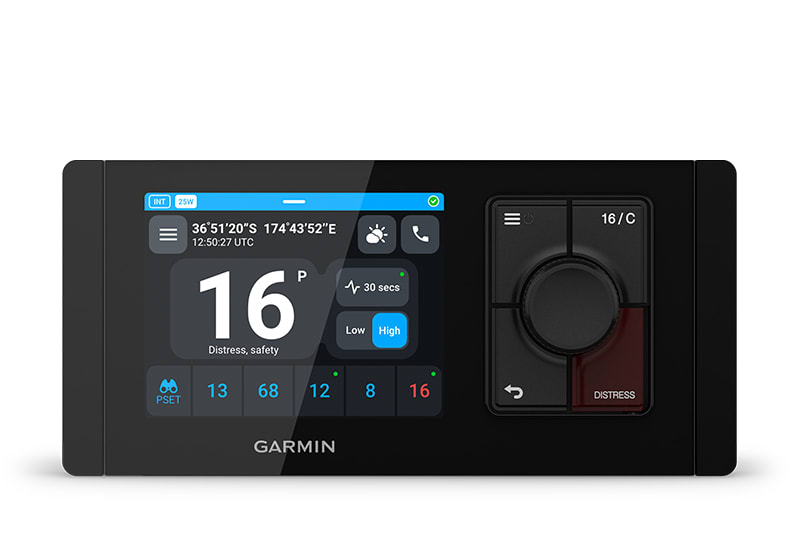

BRIGHT 3.5″ COLOUR TOUCHSCREEN DISPLAY
MODERN EDGE-TO-EDGE GLASS DESIGN
COMPACT FORM FACTOR AND REDUCED MOUNTING DEPTH
INCLUDES FIST MIC AND BUILT-IN ADAPTIVE NOISE CANCELLATION
GARMIN BLUENET™ NETWORK
This remote station connects to your Garmin Signal™ VHF 400 or 220 radio via a single Garmin BlueNet™ Network connection for easy setup and installation.
TOTAL CONTROL
Control VHF, DSC, AIS and other radio functions from a secondary helm or flybridge. The intercom feature enables communication between remote station and networked head units.
MODERN HELM CONFIGURATION
Featuring an edge-to-edge glass design and bright 3.5″ colour touchscreen display, it looks great installed at your helm, and the form factor matches the Garmin Signal VHF marine radios.

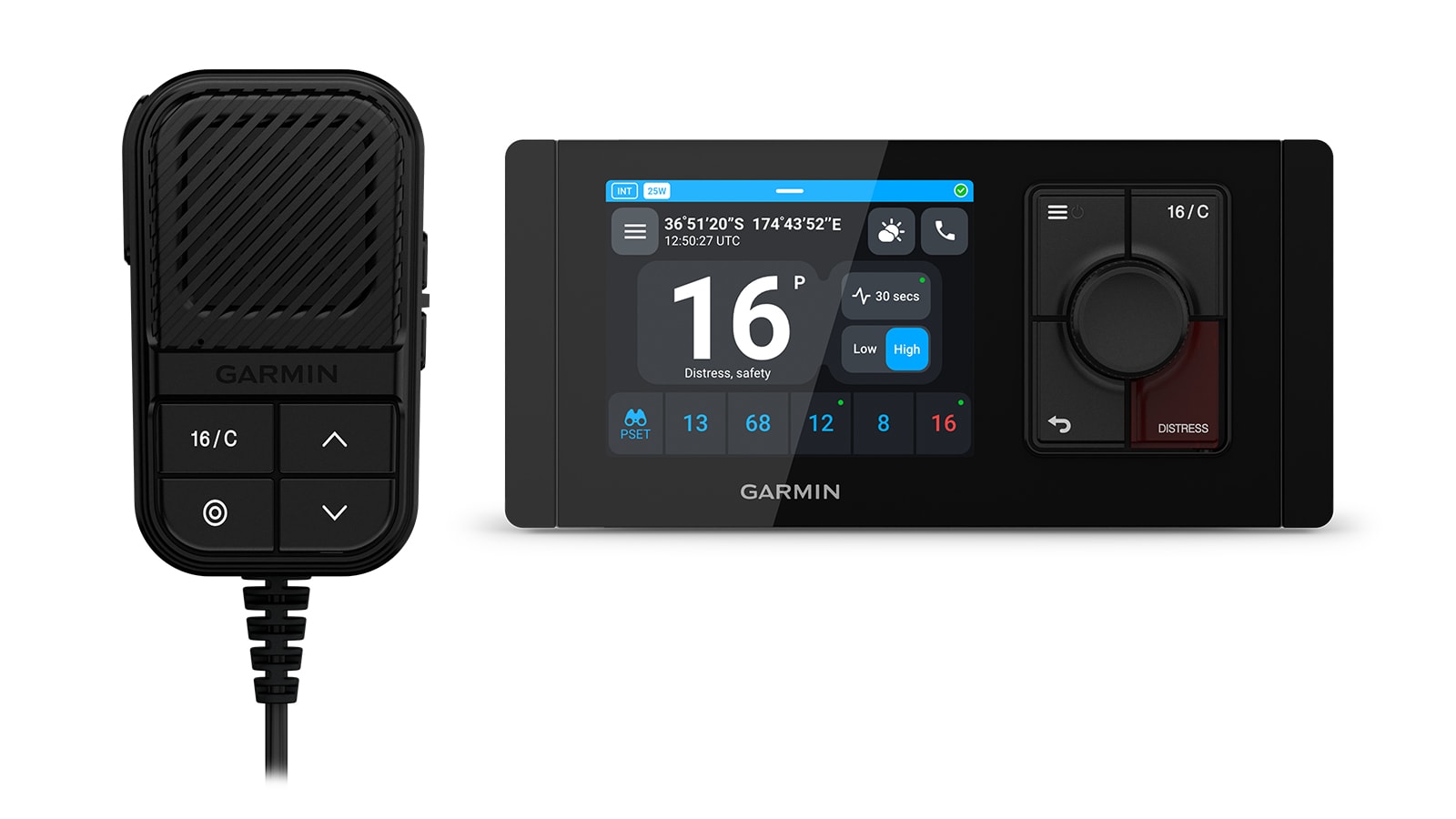

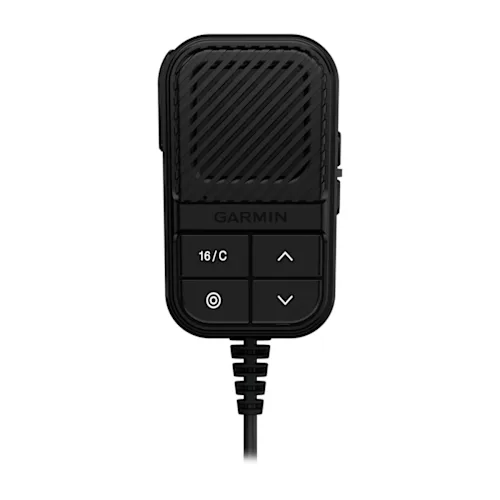

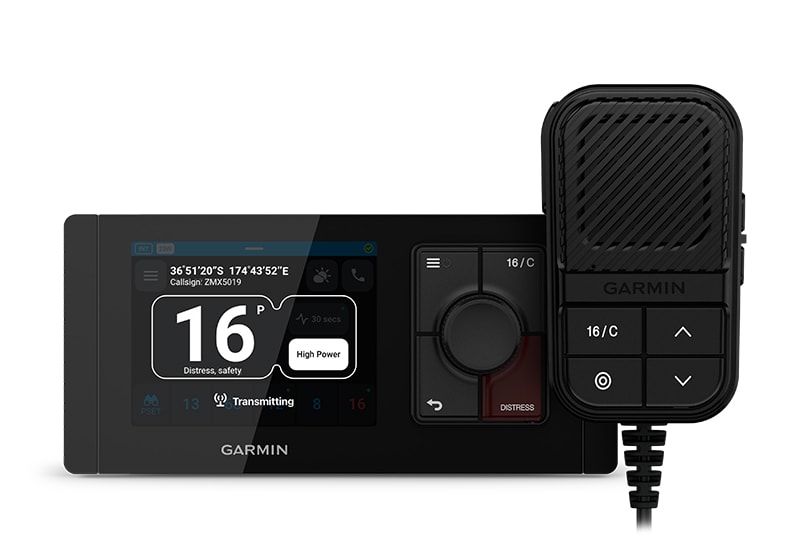

FIST MIC
The included fist mic with built-in adaptive noise cancellation provides superior audio clarity in high winds or rough seas.
BUILT FOR LIFE AT SEA
Garmin Signal RM 100 is built for harsh marine environments with IPX6 and IPX7 ratings.
- Garmin Signal™ RM 100 head unit
- Fist mic
- Sun cover
- Remote station power and external audio cable with fuse (2 m)
- Fist mic power cable with fuse (2 m)
- Cable for Garmin BlueNet™ Network (6 m)
- Mounting hardware
- Mounting template
- Documentation
General |
|
| Unit size | Head Unit: 75 x 160 x 29 mm (3″ x 6.3″ x 1.2″) Fist Mic: 100 x 60 x 31 mm (3.9″ x 2.4″ x 1.2″) |
|---|---|
| Weight | Head Unit: 240 g (0.54 lbs) Fist Mic: 245 g (0.54 lbs) |
| Operating voltage | 9.6 – 32 VDC |
| Water rating | IPX7 |
| Display Type | Colour IPS LCD, capacitive touch |
| Display Size | 3.5″ (89 mm) |
| Display Resolution | 640 x 480 pixels |
| Operating temperature | –20° to 55° C (–4° to 131° F) |
| Backlight | 1,000 nits |
| Multi-language interface | |
VHF Features |
|
| Adaptive noise cancellation | |
|---|---|
| Audio record and playback | |

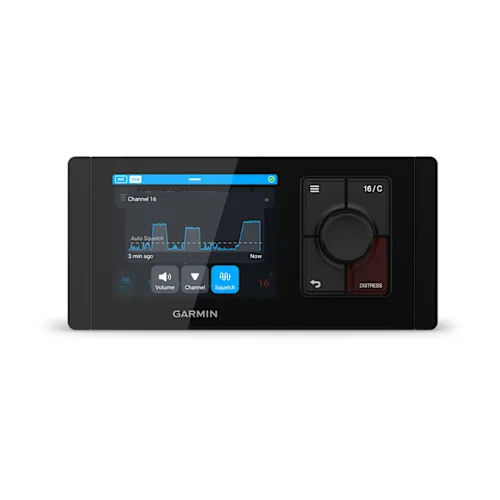

| Auto squelch | |
| Dual/Tri watch | |
| Presets watch | |
| NOAA weather alert | |
| NOAA weather watch | |
| Intercom support | |

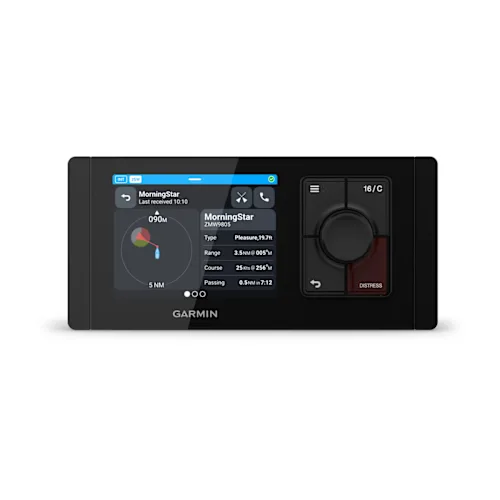

| AIS target display | |
| AIS collision and MOB alarms | |
Audio |
|
| Max speaker output power{} | Fist Mic: 5 W RMS, < 1% THD |
|---|---|
| External speaker | |
| Max external speaker output power | 15 W RMS, < 1% THD, 4 Ω |
Tactical features |
|
| Night vision mode | |
|---|---|
Electrical features |
|
| Typical current draw at 12 Vdc | Head Unit: 700 mA, 6 A max Fist Mic: 90 mA, 0.9 A max |
|---|---|
| Compass safe distance | Head Unit: 70 cm (27.6″) Fist Mic: 15.8 cm (40″) |

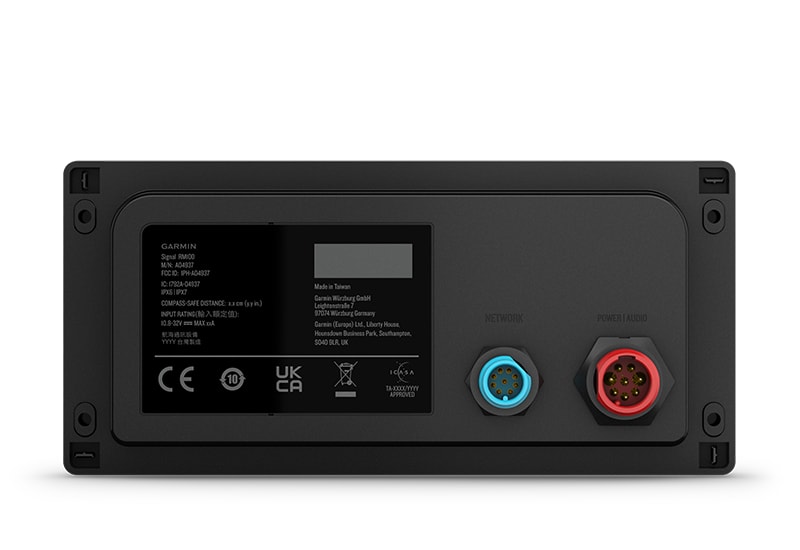

Networking & Connections |
|
| Garmin BlueNet™ Network | GMN 1.0/2.0 |
|---|---|
