Fusion Nrx300, Black Marine Wired Remote With Connectivity To The Nmea 2000 Network
Black Marine Wired Remote with Connectivity to the NMEA 2000® Network
809.00
Series
Fusion
Control
Connectivity
Model/Color
- Description
- Additional information
- IN THE BOX
- SPECS
Description
Description
TAKE CONTROL OF YOUR AUDIO ENTERTAINMENT

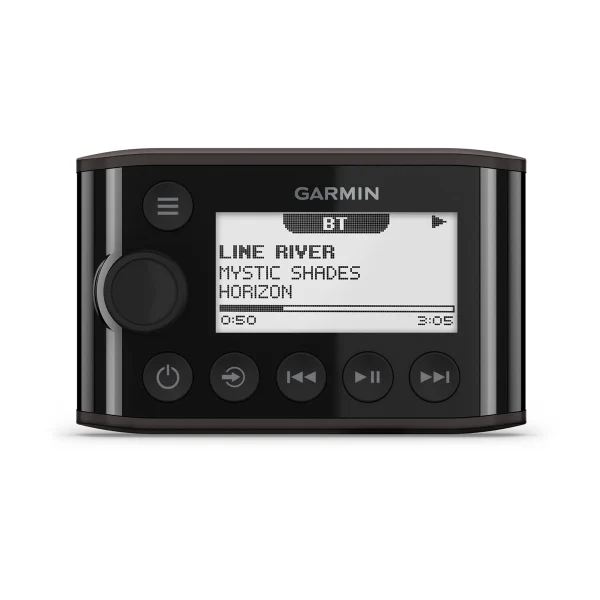

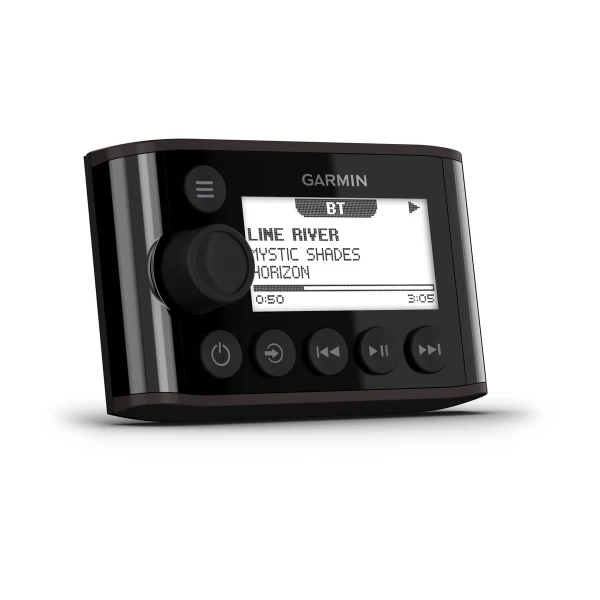

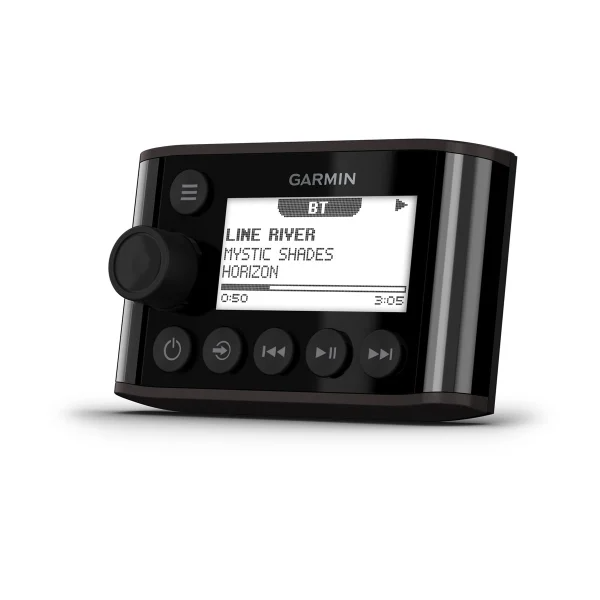

A perfect solution for audio control, the Fusion NRX300 black wired remote allows you to enjoy localised audio control from any audio zone on board your boat.
The optically bonded monochrome LCD allows for easy navigation.
Quick and simple to install with plug-and-play setup.
Install with a conventional flush mount or integrate into the helm with a premium flat finish.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the NRX300 black wired remote is IPX7 rated and has been tested to a high level of protection against salt fog, temperature, vibration and UV.
NMEA 2000 REPEATER
Connect the NRX300 black wired remote to your boat’s existing NMEA 2000 network and display data from your compatible marine electronics including wind data, depth, speed, heading, position, ETA and water temperature.
MULTI-ZONE™ TECHNOLOGY
The NRX300 black wired remote can control up to 4 audio zones1 on board your boat with localised volume control and global source selection – allowing you to customise your onboard audio entertainment experience.
Additional information
Additional information
| Series | |
|---|---|
| Control | Audio |
| Connectivity | NMEA2000® |
| Model/Color | Black Marine Wired Remote with Connectivity to the NMEA 2000® Network |
IN THE BOX
Fusion® NRX300 black wired remote
Mounting gasket
Four 8-gauge, self-tapping screws
Two screw covers
6 metres (20 ft) drop cable for the NMEA 2000 network
T-connector for the NMEA 2000 network
Dust cover
Documentation
SPECS
General |
|
| PHYSICAL DIMENSIONS (HXWXD) | 70 x 110 x 50 mm (2.76″ x 4.33″ x 1.97″) |
|---|---|
| WATER RATING | IPX7 |
| POWER INPUT | 10.8-16 VDC |
| OPERATING TEMPERATURE RANGE | 0° to 50° C (32° to 122° F) |
| CURRENT (MAX.) | 110 mA at 12 VDC |
Remote features |
|
| DISPLAY | 2.6″ optically bonded monochrome LCD |
|---|---|
| SUPPORTED NMEA 2000 PGN DATA | 127250 – Heading sensor reference (true, magnetic) 128259 – Water speed reference (paddle wheel, pitot tube, doppler log, correlation log, electromagnetic log) 128267 – Water depth (offset add or subtract) 129025 – Position (latitude and longitude) 129026 – Course Over Ground (COG) and Speed Over Ground (SOG) [COG reference true, magnetic] 129029 – Global Navigation Satellite System (GNSS) position data 129284 – Navigation data (ETA) 130306 – Wind data reference (apparent wind relative to the vessel centerline) 130310 – Water temperature and air pressure 130311 – Water temperature and air pressure 130312 – Temperature and temperature source (sea temperature) |
| WARRANTY | 3 years |
CONNECTIVITY |
|
| NMEA 2000 | One USB 2.0 port |
|---|---|
