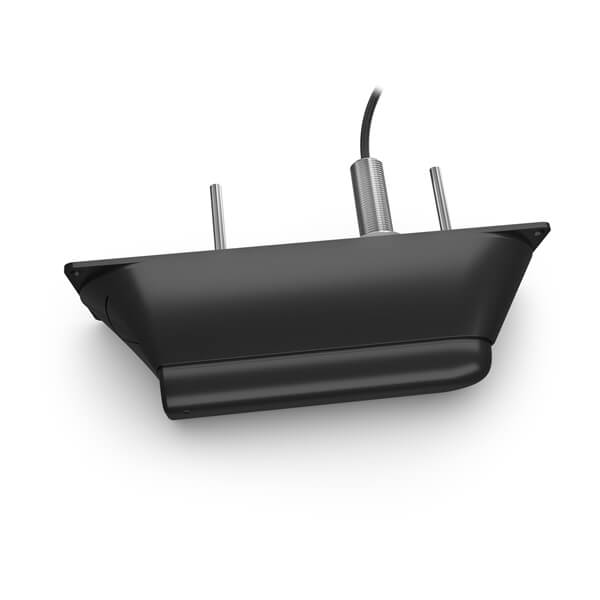

Garmin Gt56Uhd-Th Xdcr 12Pin Trad/Dv/Sv Hwchirp/455/800/1M Single
GT56UHD-TH
3,399.00
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
GT52HW-TM transducer is perfect for freshwater anglers who want CHIRP traditional sonar and CHIRP ClearVü and CHIRP SideVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below and to the side of the boat.
The 12-pin transducer features high wide band CHIRP traditional sonar and has a power rating of 250 W. The CHIRP ClearVü and CHIRP SideVü (455/800 kHz) elements have a power rating of 350 W each (1,050 W total).
GT52HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.
Additional information
Additional information
| Series | |
|---|---|
| Installation | THRU-HULL MOUNT |
| Tradition Sonar | High Wide |
| ClearVü | 455/800/1000KHZ |
| SideVü | 455/800/1000KHZ |
SPECS
General |
|
| Transducer frequency | CHIRP High Wide (150-240 kHz); ClearVü CHIRP 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
|---|---|
| Transducer power | Traditional 250 W; ClearVü/SideVu 350 W |
| Transducer beamwidth | Traditional: 24°-16° ClearVü/SideVü: 2.0°x50° @ 455 kHz and 1.0°x30° @ 800 kHz |
| Transducer maximum depth | Traditional: 800 ft.; ClearVü: 500 ft.; SideVü: 500 ft. |
| Transducer cable length | 20 ft. |
| Transducer depth/speed/temperature | Depth and temperature |
| Transducer number of pins | 12-pin |
| Transducer supported deadrise/transom angles | 0°-70° degree transom |
IN THE BOX
Depending on the version selected:
GT56UHD-TM
GT56UHD-TM transducer
Transom mount
Mounting hardware
Ferrite beads
Documentation
GT56UHD-TH
GT56UHD-TH transducer
Stainless steel stem
Fairing block
Isolation plate and bushings
Extension cable
Mounting hardware
Documentation
GT56UHD-THP
2 GT56UHD-TH transducers
Stainless steel stems
Fairing blocks
Isolation plate and bushings
Y-cable
Mounting hardware
Documentation
