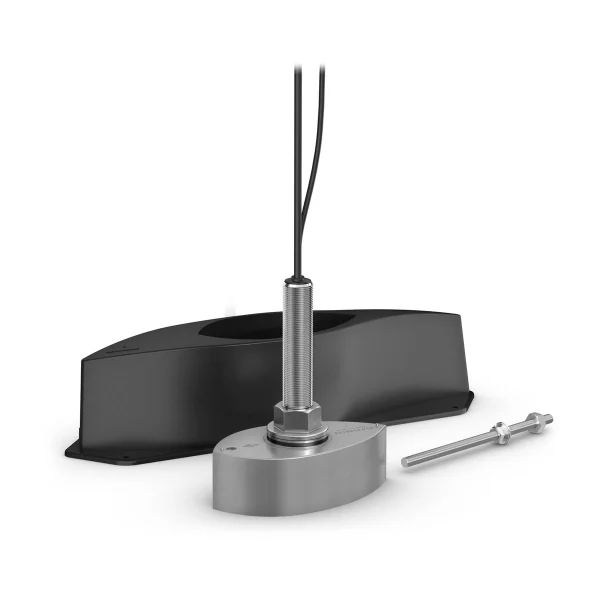

Panoptix™ PS70
With Transducer and Fairing Block
د.إ 22,649.00
- Description
- SPECS
- IN THE BOX
Description
Description
SEE FISH LIVE. CATCH FISH DEEP.
The Panoptix™ PS70 stainless steel thru-hull transducer is powered by Garmin RapidReturn™ sonar, which gives you live sonar views up to 300 metres below the surface.
LIVE SONAR UP TO 300 METRES
MULTIPLE SONAR MODES
WIDE SONAR BEAM
IMAGE STABILISATION
THRU-HULL MOUNTING
800-WATT POWER OUTPUT
GARMIN RAPIDRETURN SONAR
This sonar sends multiple simultaneous pings through the water column. The result is live sonar capabilities up to 300 metres, giving deep sea anglers a real-time view of what’s below the surface.
LIVEVÜ™ DOWN SONAR
See real-time live sonar images up to 300 metres. With Garmin RapidReturn, anglers can see small baitfish and target game fish in real time. The wide 120-degree beam angle covers huge areas of water.
TRADITIONAL SONAR
View crisp, clear fish arches with excellent separation of targets under the boat.
TRIPLE-BEAM SONAR
Get a 3-way traditional sonar split that gives sonar returns from the port and starboard directions, as well as targets directly under the boat, in an easy-to-understand traditional sonar view. Adjust the beam angles to fine-tune your 3 columns of sonar data.
REALVÜ™ 3D SONAR
Historical scanning technology helps find fish and build a map of the ocean floor while your boat is moving. It shows the entire water column you have passed over in 3D, from the bottom to the surface and all fish in between. The True Motion 3D sonar returns feature now follows the vessel’s course over ground.
QUICKDRAW CONTOURS FEATURE
Survey areas of the ocean floor in great detail. New QuickDraw Contours feature improvement allows users to survey wide swaths of the ocean floor, even at depths up to 300 metres.
GET THE PERFORMANCE YOU NEED FOR DEEP-SEA FISHING
Catch more fish
LIVE SONAR DISPLAY RATE
Panoptix PS70 will display at a minimum of 10 frames per second (6 to 8 times faster than the competition), which results in faster sonar returns.
WIDE SONAR BEAM
Locate bait and fish quickly with wide 120-degree by 8-degree sonar beam, which covers more of the water column at once.
IMAGE STABILISATION
An internal sensor will stabilise sonar returns, so you see a clear view even in rough waters.
THRU-HULL INSTALLATION

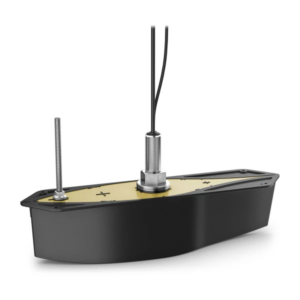

The stainless steel thru-hull transducer can be flush mount or pocket mounted. A fairing block allows for deadrise angles of 0 to 20 degrees. The optional fairing block can survive high operating speeds and withstand the rough conditions found offshore.
HIGH-POWER SONAR
800-watt power output gives you stronger sonar penetration through the water.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
SPECS
General |
|
| DIMENSION | 21.6 x 11.4 x 24.4 cm (8.5″ x 4.49″ x 9.61″) |
|---|---|
| WEIGHT | 4.6 kg (10.12 lbs) |
| WATERPROOF | IPX7 |
| TRANSDUCER BEAMWIDTH | 120° x 8° |
| TRANSDUCER CABLE LENGTH | 2.4 m (8 ft) + 12.1 m (40 ft) extension |
| TEMPERATURE RANGE | 0° C to 40° C |
Electrical features |
|
| POWER INPUT | 10-35 V |
|---|---|
| POWER USAGE | 35 W |
| FUSE | 7.5 A |
Sonar features & specifications |
|
| FREQUENCY | 190-210 kHz |
|---|---|
| TRANSMIT POWER | 800 W |
| MAXIMUM DEPTH | Saltwater: 300 m (1000′) |
| SONAR TYPE | Multi-beam phased array |
Connections |
|
| GARMIN MARINE NETWORK PORTS | 1 (small connector) |
|---|---|
Sonar Modes |
|
| REALVÜ 3D HISTORIC | |
|---|---|
| 3-BEAM TRADITIONAL | |
| TRADITIONAL SONAR SOURCE | |
IN THE BOX

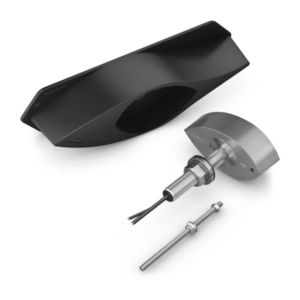

- PS70 down-looking thru-hull down transducer
- Fairing block
- Stainless steel thru-hull mounting hardware
- Power cable
- Network cable 12 metres (40 ft) with network adapter
- Documentation
