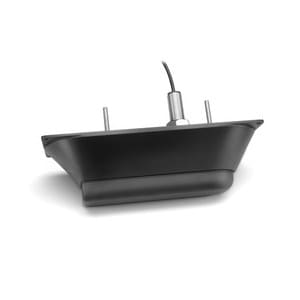

Garmin GT23M-TH
GT23M-TH
3,079.00
- Description
- Additional information
- SPECS
- IN THE BOX
Description
Description
Perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar with a stainless steel stem, this thru-hull mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W.
For installation, follow the included instructions carefully to avoid damaging your boat.
Additional information
Additional information
| Series | |
|---|---|
| Pin Count | 8-PIN |
| Installation | THRU-HULL-MOUNT |
| Tradition Sonar | MID-CHIRP |
| ClearVü | 260/455KHZ |
SPECS
General |
|
| Transducer frequency | CHIRP Mid-band (80-160 kHz); ClearVü CHIRP 260 kHz (245- 275 kHz) & 455 kHz (445-465 kHz) |
|---|---|
| Transducer power | CHIRP Traditional 600 W; ClearVü 500 W |
| Transducer beamwidth | Traditional: 24°-13° ClearVü: 2.0°x51° @ 260 kHz 1.4°x29° @ 455 kHz |
| Transducer maximum depth | Traditional: 1,800 ft.; ClearVü: 1,000 ft. |
| Transducer cable length | 30 ft. |
| Transducer depth/speed/temperature | Depth and temperature |
| Transducer number of pins | 8-pin |
| Transducer supported deadrise/transom angles | Up to 25° deadrise |
IN THE BOX
GT23M-TH transducer
Stainless steel stem
Fairing block
Isolation plate and bushings
Extension cable
Mounting hardware
Documentation
