Description

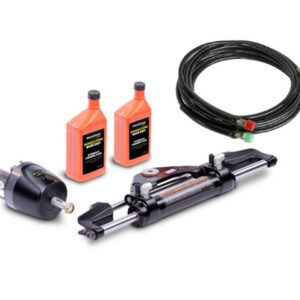

The SeaStar Outboard steering kit (HK6324A3) is unmatched in comfort and control for use on single and dual non-power assisted outboard engines up to 350HP (700 combined HP for counter-rotating duals) that have ABYC standard engine tilt tube. Hose comes standard with brass fittings, stainless steel fittings optional above, ideal for salt water applications. This option is only available with us
Includes:

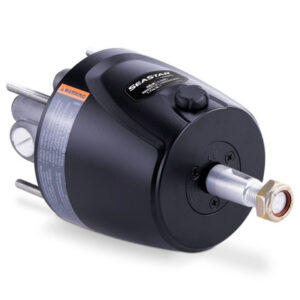

HH5271-3 Helm
HC5345-3 Cylinder

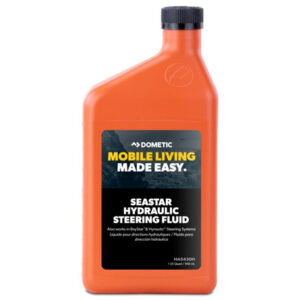

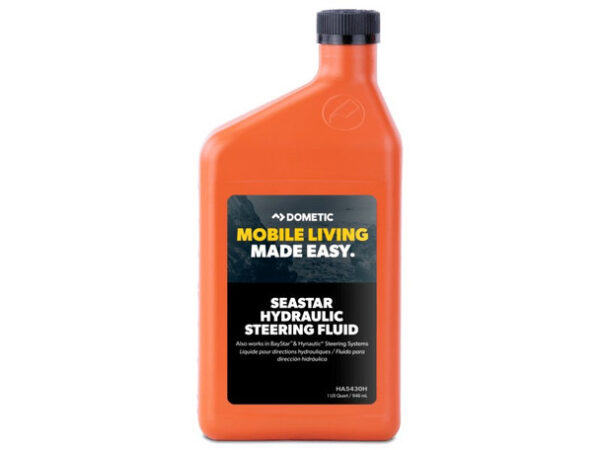

2 Quarts Oil

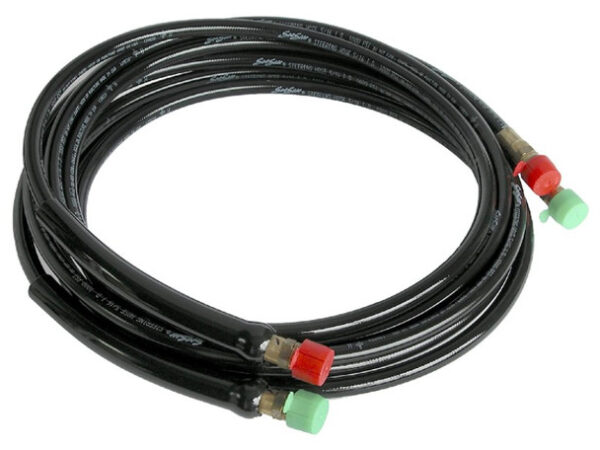

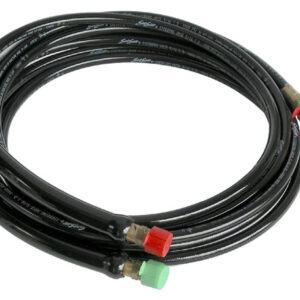

HO5124 Hose, 24ft x 2 (comes standard with brass fittings, option to upgrade to stainless steeling fittings above, only available with us)
Features:
Unmatched low friction hydraulic steering system.
5 turns lock-to-lock for single cylinder use.
The HH5271-3 front mount helm pump only needs a 3″ cutout in the dash
Standard 3/4″ Taper shaft on the helm pump
Can be upgraded to dual station and/or dual outboards
For boats that reach speeds up to 60MPH, for boats over 60MPH, purchase the HK7500A-3
Option to upgrade hose to stainless steel fittings, ideal for salt water applications. This is only available with us.
Specs:
Suitable for boats that travel up to speeds of 60MPH
Helm Pump: 1.7 cubic inches
Stainless Steel shaft
1000 PSI rating for helm and cylinder
Cylinder: 8.3 cubic inches
